Series 360 ES Balances

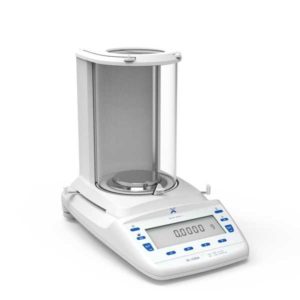

Series 360 ES Semi-micro, Analytical and Precision Balances

With the 360 ES series balances, Precisa is setting new standards: innovative, high-tech instrumentation which includes the latest technical developments, unique performance features, best user-interface and the most modern design to establish the 360 ES series as the very bench-mark for modern laboratory technology.

The 360 ES series owes its extremely high reliability and durability to the well-known competence of Precisa’s engineering and development. The weighing cell is of the highest mechanical quality, operates extremely precisely.

The structured access to the balance menu and the clearly presented, easy to read backlit LCD offer simplicity of operation.

Precisa’s new 360 ES series has standard an USB device interface to communicate with a computer as well as an RS232 interface for the connection of computers and printers.

Highlights

  • Impressive design
  • Outstanding operating simplicity
  • Highly precise technology
  • Precisa Balances 360 Connections
  • Impressive design
  • Outstanding operating simplicity
  • Highly precise technology
  • Advanced, multipurpose connectivity
  • Impressive design
  • Outstanding operating simplicity
  • Highly precise technology
  • Precisa Balances 360 Connections
  • Fully automatic internal calibration system, programmable time and temperature controlled (SCS)
  • Draft shield with ambidextrous operation
  • Die-cast aluminium housing of the balance
  • Clock with date and time
  • High contrast liquid crystal graphic display with high resolution
  • High resolution weighing cell with optimised electronic control
  • USB device and RS232/V24 bi-directional interface as standard
  • Upgrading via Internet
  • Multi-user memory (MUM)
Integrated Functions:
  • Pipette calibration
  • Density determination
  • Variety of measurement units
  • Multi-level back weighing
  • Dynamic weighing and dynamic differential weighing (weighing on ship)
  • Minimum sample weight (MSW) according to USP
  • Automatic Reproducibility Test (ART)
  • Buoyancy Error Suppression Technology (BEST)
Features
  • Swiss made
  • Backlit LCD
  • Self-Calibration-System
  • RS232 interface for PC / printer
  • USB device
  • EU/OIML type approval
  • Support IQ/OQ/PQ
  • Anti-theft protection
  • Clock (printout GLP/GMP, auto-cal, etc.)
  • Below balance weighing
Applications
  • Variety of measurement units
  • Percent weighing
  • Piece counting
  • Animal weighing
  • Density determination
  • Check weighing
  • Net total application: Add up summation
  • Free conversion Area conversion
  • Statistics
  • Recorder
  • Multilevel back weighing
  • Dynamic differential weighing (weighing on ship)
  • Pipette calibration
  • Buoyancy error suppression technology
  • Minimum sample weight according to USP
  • Automatic repeatability test
Specific Accessories
  • Draft shield 360 automatic, height 260 mm, for 0.01mg and 0.1mg balances
  • Podest for draft shield 360
  • Draft shield 321 LG, height 260mm
  • Draft shield easy (glass with cover), for 0.001g balances
  • Hook for weighing below the balance
  • Cable for balance 360/321 used as reference balance
  • Desk power adapter with EU plug, 80V - 240V, for balances with IP65 (protection against ingress of dust and low pressure water jets)
  • Density kit, for 0.01mg and 0.1mg balances, container size: Ø = 75mm, h = 100mm
  • Density kit solids only (without glass body and hook), for 0.01mg and 0.1mg balances, container size: Ø = 75mm, h = 100mm
  • Glass body for density determination of liquids, V = 10cm3
  • Downholder for samples with ρ < 1g/cm3
  • Evaporation trap for pipette calibration, for 0.01mg and 0.1mg balances
  • Adapter for Eppendorf evaporation trap, for 0.01mg and 0.1mg balances
  • Animal weighing bowl complete, for 0.01g balances
  • Animal weighing bowl complete, for 0.1g and 1g balances
  • Dust cover for the whole balance, set of 20 pieces, for 0.01mg and 0.1mg balances
  • Dust cover for the whole balance, set of 20 pieces, for 0.001g, 0.01g, 0.1g, 1g balances
General Accessories
  • Printer CBM910 230V, incl. data cable and paper roll
  • Printer CBM910 115V, incl. data cable and paper roll
  • Paper roll for Printer CMB910
  • Ribbon for printer CMB910
  • Multiplexor for up to 7 balances of the series 165/320/321/360/490 for serial (RS232) data transmission to PC or printer (at least one balance has to be of the series 320/321)
  • Adapter RJ45 / DB9 f, (to PC)
  • Adapter RJ45 / DB25 m, (to printer)
  • Data cable DB9 m / DB9 f, length 1.5m, (to PC)
  • Data cable DB9 m / DB25 m, length 1.5m, (to printer)
  • USB cable A-B, length 1.5m
  • HID cable, RS232 / USB (x: 0=e, 1= d, 2=f)
  • UPS (uninterruptible power supply), external
  • Anti-theft device, mechanical
  • Bowl for diamonds (carat bowl)
Options
  • Initially verified according to 2014/31/EU by Precisa, available for balances with EC(/OIML) type approval and SCS only
  • IP65 (protection against ingress of dust and low pressure water jets), fitted at factory, for 0.01g, 0.1g and 1g balances only (others on request)
PrecisaBUS Accessories
  • Remote display, freestanding, with cable, length 1.5m
  • Remote display, mounted to the wall, with cable, length 3m
  • RS232 interface box for data transmission, DB25 f:
    - to PC, printer or bar code printer
    - from bar code reader (350-8856) or reference balance
  • Interface box, current loop, 20mA, passive
  • Analog output box, -10V .. +10V, resolution 10mV
  • Ethernet box, wired
  • Ethernet box, wireless
  • Signal lamp, indicator with 3 lamps; red, green and yellow
  • Horn for signal lamp
  • I/O box with 6 TTL inputs and 8 relay outputs
  • CCE bar code scanner BCS5040, DB25 m, to be connected by meanings of the RS232 interface 350-8506
Slide-in Module
  • Precisa BUS converter, enables connection to almost all Precisa BUS accessories
SmartBox Applications
  • SmartBox Counting
  • SmartBox FPVO (finished goods packing control)
  • CCE bar code scanner BCS5040, RJ45, to be connected by meanings of channel 1 or 2 of the SmartBox

Models

Models: Capacity: Readability:
ES 125SM 125 g 0.01 mg
ES 225SM-DR 102 g / 225 g 0.01 mg / 0.1 mg
ES 120A 120 g 0.1 mg
ES 220A 220 g 0.1 mg
ES 320A 320 g 0.1 mg
ES 420A 420 g 0.1 mg
ES 520A 520 g 0.1 mg
ES 420A-FR 120 g - 420 g 0.1 mg - 1 mg
ES 320M 320 g 1 mg
ES 620M 620 g 1 mg
ES 920M 920 g 1 mg
ES 1220M 1220 g 1 mg
ES 2220M 2200 g 1 mg
ES 620M-FR 120 g - 620 g 1 mg - 10 mg
ES 1220M-FR 240 g - 1220 g 1 mg - 10 mg
ES 1200C 1200 g 0.01 g
ES 2200C 2200 g 0.01 g
ES 4200C 4200 g 0.01 g
ES 6200C 6200 g 0.01 g
ES 8200C 8200 g 0.01 g
ES 6200C-FR 2200 g - 6200 g 0.01 g - 0.1 g
ES 8200C-DR 3200 g / 8200 g 0.01 g - 0.1 g
ES 6200D 6200 g 0.1 g
ES 8200D 8200 g 0.1 g
ES 12200D 12200 g 0.1 g
ES 12200G 12200 g 1 g
