Series 360 EP Balances

Series 360 EP Semi-micro, Analytical and Precision Balances

With the 360 EP series balances, Precisa is setting new standards: innovative, high-tech instrumentation which includes the latest technical developments, unique performance features, best user-interface and the most modern design to establish the 360 EP series as the very bench-mark for modern laboratory technology.

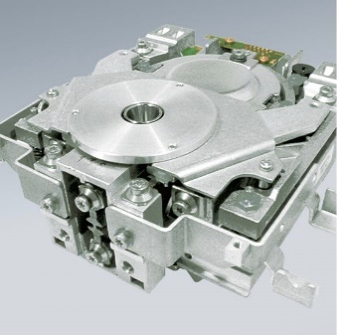

The 360 series owes its extremely high reliability and durability to the well-known competence of Precisa’s engineering and development. The weighing cell is of the highest mechanical quality, operates extremely precisely.

The structured access to the balance menu and the clearly presented, easy to read graphic display offer simplicity of operation.

Precisa’s new slide-in modules provide a range of connection options for the balance. The interchangeable inserts assure connection to future communication technologies like USB Host, Ethernet wired, Ethernet wireless, Bluetooth and RS 485.

Highlights

  • Impressive design
  • Intuitive user-interface
  • Highly precise technology
  • Advanced, versatile connectivity
  • Impressive design
  • Intuitive user-interface
  • Highly precise technology
  • Advanced, versatile connectivity
  • Impressive design
  • Intuitive user-interface
  • Highly precise technology
  • Advanced, versatile connectivity
  • Fully automatic internal calibration system, programmable time and temperature controlled (SCS)
  • Draft shield with ambidextrous operation
  • Die-cast aluminium housing of the balance
  • Clock with date and time
  • High contrast liquid crystal graphic display with high resolution
  • High resolution weighing cell with optimised electronic control

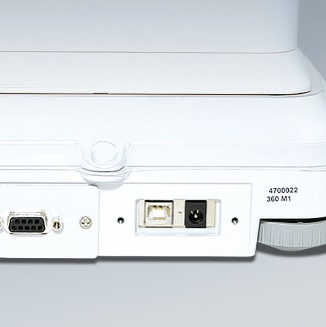

  • USB device and RS232/V24 bi-directional interface as standard
  • Upgrading via Internet
  • Multi-user memory (MUM)
Integrated Functions:
  • Pipette calibration
  • Density determination
  • Variety of measurement units
  • Multi-level back weighing
  • Dynamic weighing and dynamic differential weighing (weighing on ship)
  • Minimum sample weight (MSW) according to USP
  • Automatic Reproducibility Test (ART)
  • Buoyancy Error Suppression Technology (BEST)
Features
  • Swiss made
  • Backlit graphic LCD
  • Self-Calibration-System
  • Easy alphanumeric input
  • Touchless sensors
  • RS232 interface for PC / printer
  • USB device
  • Communication options
  • EU/OIML type approval
  • Support IQ/OQ/PQ
  • Anti-theft protection
  • Direct tare and reference weight entry
  • Clock (printout GLP/GMP, auto-cal, etc.)
  • Below balance weighing
  • Motorized draft shield
Applications
  • Variety of measurement units
  • Percent weighing
  • Piece counting
  • Animal weighing
  • Density determination
  • Check weighing
  • Net total application: Add up summation
  • Free conversion Area conversion
  • Statistics
  • Recorder
  • Multilevel back weighing
  • Dynamic differential weighing (weighing on ship)
  • Pipette calibration
  • Buoyancy error suppression technology
  • Minimum sample weight according to USP
  • Automatic repeatability test
Specific Accessories
  • Draft shield 360 manual, height 260 mm
  • Podest for draft shield 360
  • Draft shield 321 LG, height 260mm
  • Draft shield easy (glass with cover), for 0.001g balances
  • Hook for weighing below the balance
  • Cable for balance 360/321 used as reference balance
  • Desk power adapter with EU plug, 80V - 240V, for balances with IP65 (protection against ingress of dust and low pressure water jets)
  • Density kit, for 0.01mg and 0.1mg balances, container size: Ø = 75mm, h = 100mm
  • Density kit solids only (without glass body and hook), for 0.01mg and 0.1mg balances, container size: Ø = 75mm, h = 100mm
  • Glass body for density determination of liquids, V = 10cm3
  • Downholder for samples with ρ < 1g/cm3
  • Evaporation trap for pipette calibration, for 0.01mg and 0.1mg balances
  • Adapter for Eppendorf evaporation trap, for 0.01mg and 0.1mg balances
  • Animal weighing bowl complete, for 0.01g balances
  • Animal weighing bowl complete, for 0.1g and 1g balances
  • Dust cover for the whole balance, set of 20 pieces, for 0.01mg and 0.1mg balances
  • Dust cover for the whole balance, set of 20 pieces, for 0.001g, 0.01g, 0.1g, 1g balances
General Accessories
  • Printer CBM910 230V, incl. data cable and paper roll
  • Printer CBM910 115V, incl. data cable and paper roll
  • Paper roll for Printer CMB910
  • Ribbon for printer CMB910
  • Multiplexor for up to 7 balances of the series 165/320/321/360/490 for serial (RS232) data transmission to PC or printer (at least one balance has to be of the series 320/321)
  • Adapter RJ45 / DB9 f, (to PC)
  • Adapter RJ45 / DB25 m, (to printer)
  • Data cable DB9 m / DB9 f, length 1.5m, (to PC)
  • Data cable DB9 m / DB25 m, length 1.5m, (to printer)
  • USB cable A-B, length 1.5m
  • HID cable, RS232 / USB (x: 0=e, 1= d, 2=f)
  • UPS (uninterruptible power supply), external
  • Anti-theft device, mechanical
  • Bowl for diamonds (carat bowl)
Options
  • Initially verified according to 2014/31/EU by Precisa, available for balances with EC(/OIML) type approval and SCS only
  • IP65 (protection against ingress of dust and low pressure water jets), fitted at factory, for 0.01g, 0.1g and 1g balances only (others on request)
PrecisaBUS Accessories
  • Signal lamp, indicator with 3 lamps; red, green and yellow
  • Horn for signal lamp
  • I/O box with 6 TTL inputs and 8 relay outputs
Slide-in Modules
  • USB host
  • Ethernet wired
  • Ethernet wireless
  • Bluetooth
  • PS/2 f & RS232 DB9 f

Models

Model: Capacity: Readability:
EP 125SM 125 g 0.01 mg
EP 225SM-DR 102 g / 225 g 0.01 mg / 0.1 mg
EP 120A 120 g 0.1 mg
EP 220A 220 g 0.1 mg
EP 320A 320 g 0.1 mg
EP 420A 420 g 0.1 mg
EP 520A 520 g 0.1 mg
EP 420A-FR 120 g - 420 g 0.1 mg - 1 mg
EP 320M 320 g 1 mg
EP 620M 620 g 1 mg
EP 920M 920 g 1 mg
EP 1220M 1220 g 1 mg
EP 2220M 2200 g 1 mg
EP 620M-FR 120 g - 620 g 1 mg - 10 mg
EP 1220M-FR 240 g - 1220 g 1 mg - 10 mg
EP 1200C 1200 g 0.01 g
EP 2200C 2200 g 0.01 g
EP 4200C 4200 g 0.01 g
EP 6200C 6200 g 0.01 g
EP 8200C 8200 g 0.01 g
EP 6200C-FR 2200 g - 6200 g 0.01 g - 0.1 g
EP 8200C-DR 3200 g / 8200 g 0.01 g - 0.1 g
EP 6200D 6200 g 0.1 g
EP 8200D 8200 g 0.1 g
EP 12200D 12200 g 0.1 g
EP 12200G 12200 g 1 g
Software & Files Downloads
