Precisa Balances 520 PT-Range

Series 520 PT Balances

Series 520 PT Analytical and Precision Balances

Swiss idea, Swiss development, Swiss production. With over 40 years knowledge and experience, Precisa Gravimetrics AG has developed one of the most important innovations in weighing technology in recent years. The Precisa PHASTbloc™ weighing cell allows you to benefit from this advanced technology and provides a technically perfect, easy-to-use, attractive, economical and sustainable balance. Discover the innovations of the 520 series. We look forward to inspiring you - as many users have been already.

The smart balance

With a 6.4” touch control screen, this is the largest in its class!

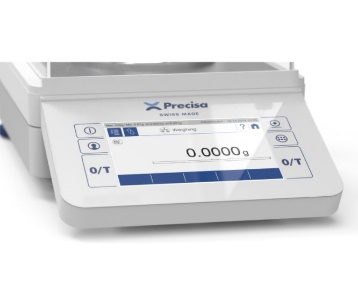

In working environments such as laboratories, research and development, where flexibility and individual user solutions are required, the Model 520 PT reveals its full potential. With the advantages of the touch screen in terms of visualization, intuitive operation and customization options, the 520 PT offers the highest degree of flexibility, safety and userfriendliness.

Six large fixed keys for the most common operating functions - on/off switch, tare, printing, user and application selection - optimize operation without reducing the display area.

Quality is assured with support for minimum sample weight according USP chapter 41, Audit trail according FDA 21 CFR Part 11 and alibi memory.

With a complete range of applications such as counting, density, animal weighing, percentage, check, ... and the RS232, USB, plus optional Ethernet, WiFi and Bluetooth interfaces, there are no limits to the 520 PT.

The 520 PT with its touch screen is the right choice for maximum user-friendliness and flexibility.

Highlights

  • PHASTbloc technology
  • Sturdy and durable design
  • Improved digital filter
  • 5“ Touch Screen, high resolution
  • Large 6.4” touch-sensitive user interface with 6 fixed keys
  • User interface to customize
  • Context Help
  • Stability Indicator
  • Electronic Level
  • Internal Calibration (SCS)
  • HID
  • USB (flash drive)
  • Additional Ethernet and other Interfaces optional
  • PHASTblocTM technology
  • Sturdy and durable design
  • Improved digital filter
  • 5“ Touch Screen, high resolution
  • Large 6.4” touch-sensitive user interface with 6 fixed keys
  • User interface to customize
  • Context Help
  • Stability Indicator
  • Electronic Level
  • Internal Calibration (SCS)
  • HID (Human Input Device)
  • USB (flash drive)
  • Additional Ethernet and other Interfaces optional
  • PHASTbloc technology
  • Sturdy and durable design
  • Improved digital filter
  • 5“ Touch Screen, high resolution
  • Large 6.4” touch-sensitive user interface with 6 fixed keys
  • User interface to customize
  • Context Help
  • Stability Indicator
  • Electronic Level
  • Internal Calibration (SCS)
  • HID
  • USB (flash drive)
  • Additional Ethernet and other Interfaces optional
  • PHASTbloc™ technology inside: Precisa Hybrid Advanced Sensor Technology, combines the benefits of current weighing cells with monolithic design
  • Robust and durable design: Die-cast aluminium base and sturdy fibreglass-reinforced durable plastic upper part
  • Improved digital filter: Eliminate external effects of environmental noise, as air turbulence and ground vibration
  • 5“ Touch screen, high resolution: UV-, shock and scratch resistant, anti-reflective, approved to operate with standard laboratory gloves, frameless for perfect and easy cleaning

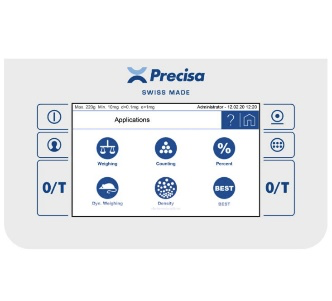

  • Large 6.4” touch-sensitive user interface with 6 fixed keys: The colour logic displays all touchactive surfaces in blue
  • User interface to customize: You decide what functions you need and the information what is displayed

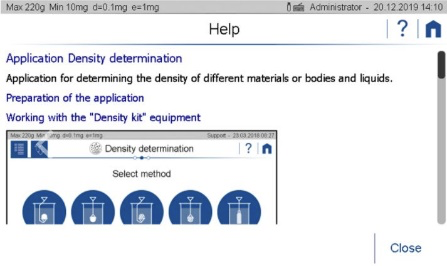

  • Context help: Simply touch the help icon and the context help appear on screen
  • Stability indicator: Indicates measurement faults and negative influences of the environment with real-time stability prediction

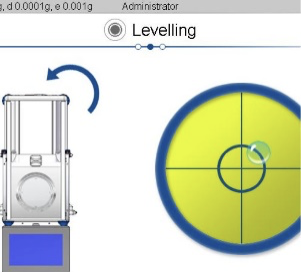

  • Electronic level: Electronic observation of levelling anytime and easy adjustment with visual support
  • Self calibration system, fully automatic (optional): Ensures always a maximum measuring accuracy
  • Human interface device (HID): Turns your balance into a keyboard what transfers the weight values directly and with no typos to the PC without installing any software
  • USB (flash drive): To transfer weight values or reports to a PC if the balance is not already connect by WLAN, WiFi or whatever
Features
  • Swiss made
    Swiss made
  • Backlit LCD
    Colour touch screen
  • Self-Calibration-System
    Self calibration system, fully automatic (optional)
  • External Calibration
    External calibration with calibration warning
  • Clock (printout GLP/GMP, auto-cal, etc.)
    Clock (GLP/GMP printout, auto-cal, etc.)
  • Below balance weighing
    Below balance weighing
  • Anti-theft protection
    Anti-theft protection (mechanical and code)
  • RS232 interface for PC / printer
    Easy alphanumeric input
  • RS232 interface for PC / printer
    Direct tare and reference weight entry
  • USB Host
    Identifier and label handling
  • RS232 interface for PC / printer
    RS232 interface (PC/printer)
  • USB device
    USB host (barcode, flash drive, …)
  • USB device
    USB device (to PC)
  • HID (Human Input Device)
    Human interface device (to PC)
  • EU/OIML type approval (on demand)
  • Integrated alibi memory (as part of EU verification)
  • Support IQ/OQ/PQ
    Support IQ/OQ/PQ
  • Support IQ/OQ/PQ
    Integrated audit trail
Applications
  • Variety of measurement units
    Units g, mg, ozt, lb, tael, etc.
  • Percent weighing
    Percent weighing
  • Piece counting
    Piece counting
  • Animal weighing
    Animal weighing
  • Dynamic differential weighing (weighing on ship)
    Dynamic difference weighing (weighing on ship)
  • Free conversion Area conversion
    Free conversion, Area conversion
  • Check weighing
    Checkweighing
  • Net total application: Add up summation
    Net total application (add up, summation, dosing)

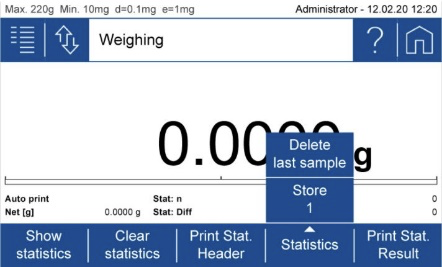

  • Statistics
    Statistics
  • Recorder
    Recorder
  • Density determination
    Density determination (liquids, solids, ...)
  • Automatic repeatability test
    Automatic repeatability test
  • Automatic repeatability test
    Minimum sample weight, USP Chapter 41

Applications (on demand)

  • Variety of measurement units
    Buoyancy error suppression technology (release code for report printout)
Features (on demand)
  • Ethernet connection
    Ethernet connection
  • Ethernet connection
    WiFi connection
  • Ethernet connection
    Bluetooth connection
  • Ethernet connection
    Touchless sensor (tare, print, …)
  • Ethernet connection
    External I/O (tare, print, …, relay)
Options
  • EU-Verification and alibi memory according to 2014/31/EU by Precisa (initial verification) available only for balances with EU/OIML type approval and SCS
  • Protection IP65, protection against ingress of dust and low pressure water jets,fitted at factory, not all types available
Specific Accessories
  • Draft shield PB, short
  • Animal weighing bowl complete for 0.01g, 0.1g and 1g balances
  • Hook for weighing below the balance
  • Density kit for 0.1mg balances, container size: Ø = 75mm, h = 100mm
  • Density kit solids only (without glass body and hook) for 0.1mg balances, container size: Ø = 75mm, h = 100mm
  • Glass body for density determination of liquids, V = 10cm3
  • Downholder for samples with density < 1g/cm3
  • Signal lamp, indicator with 3 lamps, green/red/yellow
  • Horn for Signal lamp
  • Dust cover 520 for the whole balance, set of 5 pieces
  • Carrying case 520
General Accessories
  • Printer LP4024, 230V / 115V
  • Paper roll for Printer LP4024, set of 4 pcs
  • Ribbon for Printer LP4024
  • Carat bowl (for diamond weighing)
  • Anti-theft cable
  • Foot switch USB single for one function: tare, print, ...
  • Foot switch USB double for two functions: tare and print, tare and ...
  • External USV accu power pack for continuous operation
  • Data cable DB9m-RJ45, crossed, length 1.5m, for balance used as reference balance
  • Data cable DB9m-DB9f, length 1.5m (to PC or Printer LP 4024)
  • Data cable DB9m-DB25m, length 1.5m (to Printer CBM910)
  • USB cable A-B, length 1.5m

Models

Model: Capacity: Readability:
PT 120A 120 g 0.1 mg
PT 220A 220 g 0.1 mg
PT 320M 320 g 1 mg
PT 620M 620 g 1 mg
PT 320C 320 g 0.01 g
PT 620C 620 g 0.01 g
PT 1200C 1200 g 0.01 g
PT 2200C 2200 g 0.01 g
PT 3200C 3200 g 0.01 g
PT 4200C 4200 g 0.01 g
PT 3200D 3200 g 0.1 g
PT 6200D 6200 g 0.1 g
PT 10200D 10200 g 0.1 g
PT 10200G 10200 g 1 g
